#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""

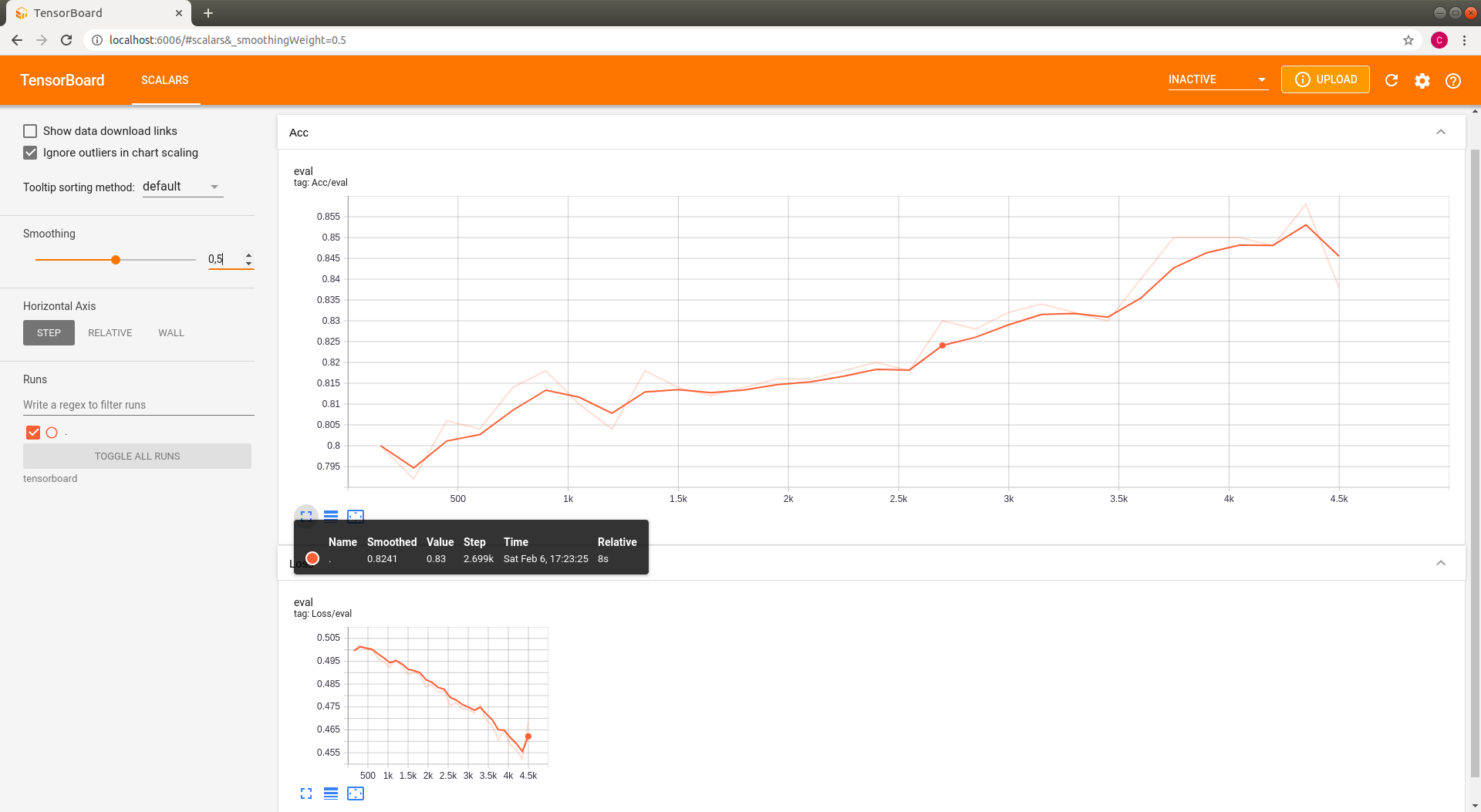

Exemple de création d'un callback tensorboard pour visualiser l'évolution de
la fonction coût et la performance de prédiction. Cette exemple s'appuit sur
l'exemple du classifier.
Created on Sat Feb 6 17:41:38 2021
@author: Cyrile Delestre
"""
from dataclasses import dataclass
import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import make_moons
from sklearn.metrics import accuracy_score
from torch import float32
from torch.nn import Module, Softmax
from torch.nn.functional import cross_entropy
from torch.optim import Adam
from torch.utils.data import Dataset, random_split
from torch.utils.tensorboard import SummaryWriter
from dstk.pytorch.networks import MLP
from dstk.pytorch import (BaseClassifier, check_tensor, CallbackInterface)
class dataset(Dataset):
def __init__(self, data, target):
self.data = data
self.target = target
def __len__(self):
return data.shape[0]
def __getitem__(self, idx):
if idx > self.__len__()-1:
raise IndexError()
return {'data': check_tensor(self.data[idx,:], float32),
'target': self.target[idx]}
class MonClassifieur(Module, BaseClassifier):
def __init__(self,
dim_in,
n_layers=2):
super().__init__()
self.dim_in = dim_in
self.n_layers = n_layers
self.build()
def build(self):
self.layer = MLP(
dim_in=self.dim_in,
dim_out=2,
dim_first_lay=32,
n_layers=self.n_layers,
activation_last_layer=Softmax(dim=1),
batchnorm=False,
dropout_last_layer=False
)
self.optimizer = Adam(self.parameters(), lr=1e-3)
def forward(self, data, **kargs):
return self.layer(data)
@dataclass
class TensorBoeadCallback(CallbackInterface):
r"""
Exemple de callback simple qui permet d'envoyer dans TensorBoard des
informations en sortie de la phase d'évaluation.
"""
writer = SummaryWriter("./tensorboard")
def end_eval(self, model, data, state, control, res_loss):
n_iter = state.n_epoch*state.epoch_max_steps + state.n_iter
self.writer.add_scalar('Loss/eval', res_loss, n_iter)
y_pred = []
y_true = []
for ii in data:
y_pred.append(model.predict(ii))
y_true.append(ii['target'].numpy())
acc = accuracy_score(
y_true=np.concatenate(y_pred, axis=0).reshape(-1),
y_pred=np.concatenate(y_true, axis=0).reshape(-1)
)
self.writer.add_scalar('Acc/eval', acc, n_iter)
#%%
if __name__=="__main__":
# Génération d'un dataset de classification binaire test
data, target = make_moons(
n_samples=2000,
shuffle=True,
noise=0.4,
random_state=None
)
# Création d'un dataset PyTorch
data_ds = dataset(data, target)
data_train, data_eval = random_split(data_ds, [1500, 500])
# Chargement du modèle
model_mlp = MonClassifieur(dim_in=2, n_layers=10)
# Via le callback TensorBoeadCallback il est possible de suivre
# l'évolution de l'apprentissage dans TensorBoard.
model_mlp.fit(
X=data_train,
eval_set=data_eval,
loss_fn=cross_entropy,
nb_epoch=30,
batch_size=10,
field_target='target',
callbacks=[TensorBoeadCallback()]
)
# Visualisation du résultat du modèle
xx, yy = np.meshgrid(np.arange(-2, 3, 0.01), np.arange(-1.5, 2, 0.01))
c_torch = model_mlp.predict_proba(
np.c_[xx.ravel(), yy.ravel()].astype(np.float32)
)
plt.figure()
plt.contourf(xx, yy, c_torch[:,1].reshape(xx.shape), 50, cmap="RdBu_r")
plt.scatter(data[target==0,0], data[target==0,1], c='blue', s=8)
plt.scatter(data[target==1,0], data[target==1,1], c='red', s=8)
plt.axis('square')
plt.grid()
# Sauvegarde du modèle
model_mlp.save_weights('classif.pt');
# Reload du modèle
model = MonClassifieur.load_model('classif.pt')
